The Great Critter Project: Stage 1

This page describes the project known as The Critter which is a homebrewed robot platform with its own computer and cam on board that uses 802.11b for the communication of commands, telemetry, and video, all controllable and viewable via the internet. Stage 1 of this project is getting a simple prototype functional. I consider that stage complete. I shall detail the development of the project up to this point and future plans.


First, let me describe my goals with this project, which is by no means complete, hence the Stage 1 in the title. In the past I've had several remote controlled vehicles, all of which were cool and fun, but severely lacking in rather annoying ways. The various problems I've had have been harped on extensively in other forums, so I won't go into them here. However, the primary goals have come about as a result of those past annoyances. They are as follows:

  • A platform large enough, and sturdy enough to carry enough weight to support a battery capable of operating the unit at normal usage for a minimum of 12 hours without a recharge.
  • Stable enough to tilt up to 30 degrees in any direction without losing balance and with the drive wheels maintaining contact with the ground.
  • A communications medium that easily covers the desired playground, with sufficient onboard programming to troubleshoot a loss of signal and manuver to reaquire.
  • Sufficient proximity sensors to avoid any accidental or even intentional contact with walls, furniture, or other objects, and also to prevent the critter from going under or in between any objects without enough clearance to manuver.
  • Robust enough to handle a signficiant amount of abuse as the sensors can't be 100% efficient
  • The ability to locate itself on a previously created map and navigate from one point on the map to another autonomously
  • Capability to locate, dock with, and engage one or more charging stations
  • A powerful and accurate drivetrain with odometry and minimal friction issues.
  • Cost effective. First off, I'm not made of money, so I don't want to spend TOO much on this project. Secondly, I want to aim toward making this into a project that I could market and sell, so I would need to be able to construct it inexpensively enough to be able to sell it at a price people are willing to buy it at.

Gathering the Components


First off, I need a computer on the critter, a means for it to share a wireless datastream with a camera, enough input/output ports to control the motors, monitor the sensors, and any other features I might choose to add. It also needs enough processing power to handle all of the interfaced devices, and in the future, do all of its own map processing on board. That's more than a simple microcontroller will be able to handle. What I opted for was a TS-7200, an embedded ARM computer running Linux. This computer comes with an ethernet port, 2 usb ports, 2 serial ports, 20 digital I/O ports, and 8 analog input ports.

The distribution I'm using is Debian Sarge, although virtually any distribution that supports the ARM9 platform should work on it, and there's always the option to roll your own distribution if necessary, although I don't forsee that as being the case here. The board itself, without the optional CF card, has an even tinier linux distribution on board. About 8 megs of space is available for programs and files.


Now, I've got the computer and I can compile and run my software on it. I need a webcam and a wireless interface. The wireless part was easy. The same company that sold me the computer also sold me the usb WIFI dongle that included linux drivers, so I was set to go there. The webcam was another issue. I tried several different webcams, all of which worked on other linux boxes. I was able to compile the drivers, but the cams refused to work. I suspect the computer didn't provide enough current for the cams to function. My options now were to either try a powered usb hub, all of which seemed like they would require a lot of extra power to operate, or find some other solution for the cam.

Seeing how the computer has an ethernet port, I decided instead to try an IPcam, connected to the computer via a crossover cable (so a network hub wasn't required). The camera I selected is a Panasonic BL-C1A. It costs anywhere from $70 to $110 and has a decent image in both light and dark conditions. This let me use the computer as a router for the webserver built into the IPcam, although I eventually wrote a small cgi script to grab the image and rebroadcast it, so I could add extra security to the process. The IPcam I used also has the benefit of using much less power than a typical USB cam would, so it's not a major drain on the limited power I have available.


The next plan was to find suitable motors. This was not a trivial task. I still haven't been entirely successful. The basic requirements for the motors were that they work off 12V, geared to something where I get around 1 revolution per second, and have a shaft which will fit the hubs for wheels. I wasn't concerned with exactly what the shaft size was, only that I could find wheels, wheel hubs, and a motor to all match up. This was far more difficult than you would think, considering the sheer volume of different parts available. Even so, I still had to cheat a bit. The shaft and bore on the hub are 6mm, but there's no screw or key on the hub, so I had to resort to something more primitive.... superglue. The motors I'm using also are not equipped to handle an encoder, so I can't add odometry to the critter without finding new motors. However, I need to start somewhere.

Once I got my motors, I had to design a drive system. Since the wheels would attach directly to the shaft of the motors, at least I didn't need to build a gearbox/train, but I still needed to decide on how I wanted the wheels oriented. I opted for a 4 wheel differential drive system, with 4 motors... and that was a mistake. I was hopeful that the torque of the motors would overcome the drag inherent in such a layout, but it still takes far more effort to spin than it should, especially on carpet.

The next model will either be 2 motorized wheels + 1 caster, or 2 casters. 2 casters would be more stable, but it also means that one of the powered wheels could be off of the floor, which would cause inaccuracies in odometry, as well as make it difficult to manuver. The 3 wheel arrangement would have stability problems unless most of the weight is kept in the triangle between the three wheels.

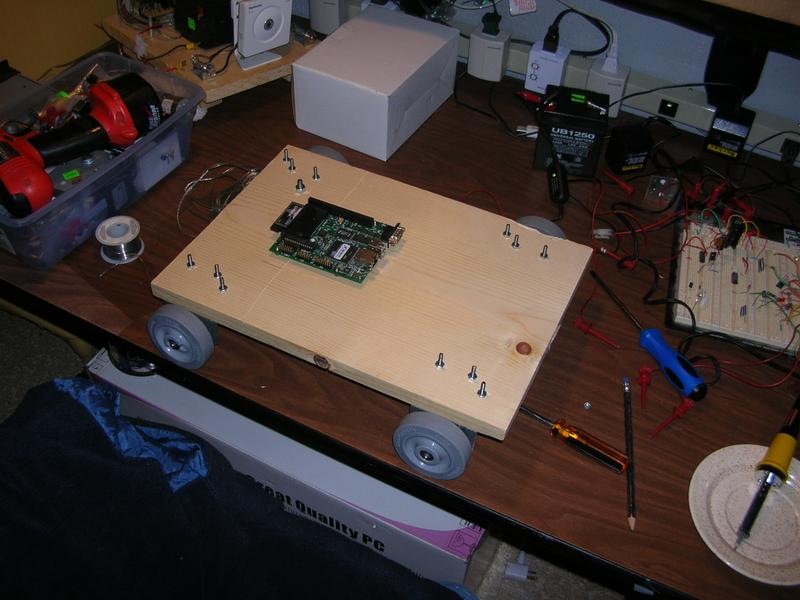

The Frame

Although I investigated using plastic or metal for my frame, since this is a prototype and will likely use something of a more permanant nature on the next stage, I opted to go with wood. It's strong, light, and easy to work with. It also warps over time, so it's not a long term solution, but it'll work for the time being.

I found some brackets at the hardware store which, while somewhat pliable, were still stiff enough to support the motors and the frame, so I used those, drilled some holes to mount the motor and screwed them to the base.

The next project was to design the H-bridge for the motors. This was pretty simple once I obtained the right components and heatsinks. H-bridge design and implementation is well covered concept, so I'm not going to delve into it here.


For power, I'm using a 12V 5Ah gelcell. I'm currently using a 9V linear regulator off the 12V to power the camera, and I then feed a 5V linear regulator off of the 9V to power the computer. The motors take the raw 12V straight from the battery. The obvious problem here is that linear regulators are horribly wasteful. I lose 60% of my battery potential just by using them. I've found some switching regulators that come in the same packaging as a 7805 and they look promising, so I have plans to replace at least the 5V regulator with a switching model to cut down on the power waste. The camera doesn't use much current, and a 9V off of 12V isn't a huge loss anyway, so I'll likely keep that regulator as is.

Once the change has been made to a 5V switching regulator as opposed to the current linear one, the uptime for the critter should extend to about 10 hours on a full charge. That almost reaches my 12 hour goal and exceeds the full recharge time of a spare battery.


The lights on the critter are little 12V incandescent lamps.... which suck. If it's pitch black, and you're 1 ft away from something, you can see the light, but it does little to illuminate the area. They also use a lot of power. I'm going to use a white LED array instead, and maybe scavenge some a flashlight reflector to focus the light ahead more.


Currently, I have one IR rangefinder and 2 limit switches, both for proximity detection. They are far from foolproof, but they do at least prevent quite a few collisions. More coverage will be needed yet though. The infrared rangefinder has a range of about 30 inches, although all I do is constantly poll the sensor to see if it's currently 5 inches or less away from an object. If so, the critter is immediately commanded to override any current command and reverse at full speed and maintain this mode until the gap is greater than 5 inches. This also will allow you (or a pet) to move the critter simply by holding an object directly in front of it. The limit switches engage whenever they are tripped. They're not perfect for the job, a sensitive "whisker" would work better, but they do in a pinch. They will detect a collision that is outside of the field of view of the IR sensor, which lets face it, is pretty narrow. A chair leg or something thin can still get between the sensors, but anything larger will get hit by one of them at least. When the limit switch gets engaged, the critter will "shake". It will move forward, backwards, turn left, turn right, in a random sequence until the switch is no longer engaged. The reason for doing this is because both switches are on the same input circuit and I don't know which one has been tripped. Eventually I'll set it up so any switch can individually trip a sensor, and knowing which switch did it, the appropriate action can be taken to reverse the process.


I have a buzzer that makes a great horn... however, it also buzzes anytime the wheels are engaged, which is quite annoying and pointless. I suspect the feedback from the motor coils is whats's causing it, but I have yet to come up with a filter. Probably a diode and capacitors.


The software was actually pretty simple. As mentioned earlier, the computer is running Debian Linux. Other than drivers included with the purchase of the computer and startup scripts, I haven't had to make any other changes to the operating system.

For the operation of the critter, I'm using lampmaster. I already had code in place to control the original RC cars, and I only needed to make a few modifications to support the motor control on the TS-7200. Right now, the critter is command oriented, except when one of the proximity sensors is triggered, and it then takes a reactive action.

Current Problems

Although this page has so far mentioned some of the shortcomings, there are some additional problems that have cropped up several times since deploymnet.

  • The huge heatsinks on the voltage regulators aren't secured, and therefore will vibrate around a bit while the critter is moving. Over time, this causes the contacts to come loose and requires me to resolder the connections, or possibly replace the regulator. Since I plan to switch to a switching regulator that shouldn't require a heatsink, this problem shoudl be eliminated.
  • Radio deadzones are also a problem, but the solution, while simple in concept, is problematic as well. The critter can know if it has lost its signal easily enough. Either it can try to contact a local host to see if it can establish a connection, or it can simply monitor the signal level directly. The problem is, once the critter knows it's in the dark, how should it respond? Without a decent way to navigate, it can't reliably backtrack. Once odometry and rangefinder sweeps are implemented, this shouldn't be much of an issue anymore.
  • The critter base is wider than the camera angle can cover. Therefore, while it looks like you're going to successfully drive past an object, you're actually still on a collision course with it. The camera lens probably can't be swapped out easily, but once the rangefinder sweep is in place, a visual representation of the surrounding environment with the critter image overlayed SHOULD assist in making manual navigation easier.

Future Plans

While my ultimate ambitions for this toy are rather lofty, short term, I have several issues I need to resolve and several features I need to implement. These will involve multiple stages.

Other Stages

  • For Stage 2, I won't be concentrating on aesthetics, but I need to have the critter be fully mobile, wheels need encoders, and it needs to be able to map-match and self navigate.
  • Stage 3 will be the stage where all parts are designed and developed to have a professional look and feel to them. At this point, it can be sold, either assembled or in kit form, but will not likely be at a price that would have many takers.
  • Stage 4 will consist of cost cutting processes to make the critter affordable for the general public, if that's a realistic goal.

Wheel encoders

Wheel encoders are absolutely necessary for the purpose of maintaining odometry. The critter needs to know how far it has travelled and in what direction.

Rangefinding scan

A servo will be set up with a combination of a sonar and IR scan, to provide a representation of the room ahead (and perhaps behind). This will require a PWM controller for the servo, as well as software to interpret the most accurate of the readings from the sweep. IR tends to be more accurate, but with a shorter range than sonar. Sonar, however, is better at picking up chair legs. The scanning hardware itself needs to be free of obstructions, but at the same time needs to be protected from collisions with obstacles.

Mapping Software

I need to develop software that takes a series of scans and uses that data to determine the location of the critter on a map. SLAM mapping will be a future project, but for now, simple map matching will work.

Docking Station

Being able to locate and engage a docking station will greatly extend the operational life of the critter without operator intervention. The ability to find the location of the docking station on the map is important to this feature.

Commercial Possibilities

The "Critter" name is based on the potential for a commercial market. It's also pragmatic. What else do I call it, after all? It's not a car, due to it's 4-axle and differential drive, it's not really a robot right now, as it's not presently autonomous. I call it a critter as I can envision selling a toy with a unique critter body... something like a huge cute mouse, only one that's internet capable AND autonomous.

Price Point

To sell as a toy, the unit will have to be priced for less than $300. That isn't very likely, at least without a massive amount of sales, as the computer and camera alone approach that figure, and that's even before all the mechanical parts, sensors, and assembly labor costs. $500 would currently be about the break-even point. That's still feasible for a hobby-market. Those that purchase preassembled robots will spend that much with no problem, but by missing the toy market, the chances for huge sales are gone.

Reaching the $300 price point will require an extensive amount of R&D, a higher cost for assembly labor, and a large bulk purchase (and possibly custom design) of the computers, cam, and circuit boards.

  • Motors without the gearhead are pretty inexpensive. This means I'll need to develop a gearbox for the motors. This is ideal in many ways, as I will have better control over the desired torque and shaft sizes, but it requires a precision job which will likely need to be outsourced. Encoders will also need to be developed in-house as prebuilt ones are too expensive.
  • The auxiliary circuitry will need to be a PC/104 compatible attachment. This allows for an unlimited amount of I/O ports, interrupts, etc. However, it will greatly extend the design and testing phase to develop all the necessary circuits.
  • The body of the critter can be created to provide a housing for the camera, so the camera itself need not have a shell of its own, only the actual circuit board is needed (if I go with the IPcam option). It's possible, with a bulk purchase, to save a few bucks on each camera without the housing, or more if we can take advantage of a bulk discount. Although the camera currently in use is one of the least expensive options available, there might be others as well that could be even less expensive.
  • A custom design of the TS-7200 should be investigated to determine if eliminating any unneeded features could cut the costs of the purchase. Obviously a bulk purchase of the computers (in excess of 100) would save quite a bit.


Of course, once I have a product to sell, I'll actually need to sell it. Who would this be targeted to? What age range, etc. These are questions to mostly answer later, however there is little point in investing a lot of resources and raising the price point for features nobody would ever be interested in.

One target is toward the hacker market. Although I won't support it under warranty, I want to make it as easy as possible for interested parties to modify the unit for their own purposes. I will be sure to open source all software used on the Critter as well as provide extensive documentation on doing development projects with it.

TS-7200 Specs

200 mhz ARM9 CPU32 Megs Ram
1 10/100 ethernet2 USB 2.0
1 CF socket2 COM ports
20 Digital I/O lines8 analog inputs
5V @ 400mA3.8" x 4.5"

H-Bridge and Power circuits

This circuit will eventually take up far less space. The huge heatsinks are for the 7805 and 7809 regulators. Switching regulators will likely not require them. The rest of the circuit can be optimized by a better board design.

Obstacle Avoidance

Large objects, like cats, are easy for the sensors to detect, and therefore prevent collisions. Smaller objects like chair legs will require a larger sensor net to ensure detection.

Other obstacles

The critter needs to be able to navigate over, through, or around a number of obstacles for which collisions are not a concern. Carpet, rugs, clothing, room thresholds, small steps, etc. The motors have to be powerful enough to overcome slight obstacles such as these. Spinning on carpet is very difficult as it creates a lot of friction.

Radio Interference

Another enemy of the critter is the loss of radio signal for the wireless network. If a stable connection can't be established, it can't receive commands, and it can't send video. From the server side, it would appear that the critter has died. The critter must have enough programming smarts to successfully navigate out of any such radio blind spot, or navigate back within range if the roaming area is large enough to lose contact. Large metal objects, such as refridgerators, dishwashers, ovens, and metal furniture that lie in the path between the critter and the access point will cause signal degradation and can be the cause of a radio blind spot.

Human Related Hazards

Of course, cats aren't the only potential hazard to the critter. Since it sorta has a mind of its own, it's possible it might end up somewhere it was not expected, and therefore get stepped on, kicked, or otherwise manhandled. This can be potentially damaging to the critter, and maybe even the human. First off, the critter needs to be robust enough to handle getting momentarily stepped on or kicked without breaking into a million pieces. Secondly, the critter should make noise and attempt to escape if a massive object is suddenly moving toward or over it, hopefully to prevent getting trampled.
